Product Description
160GB, 250GB, 500GB, 750GB Network Attached Storage solution

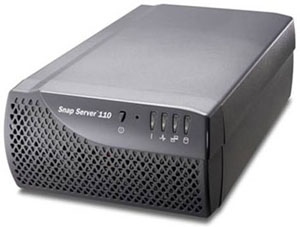

The Snap Server™ 110 combines best-in-class storage performance with
customer-centric ease of use, and capacity ideal for workgroups and remote
offices. Built on the award-winning GuardianOS™ platform, the whisper quiet Snap
Server 110 integrates many enterprise-class features into a new class of
cost-effective storage for small and medium sized businesses and the distributed
environments of many larger companies. Easy to install and virtually
maintenance-free thereafter, the Snap Server 110 integrates a variety of
software options, allowing you to choose the right data protection for business
and budget needs.
Simple, stable and secure
Outperforms all other single-drive storage alternatives
Store block and file data on the same server
Integrates seamlessly into Windows, Linux, UNIX and Apple environments
RoHS and WEEE compliant
Customer Needs
Workgroups, remote offices and individual employees who need
cost-effective storage that combines best-in-class performance and a choice of
data protection options for the business and budget needs.
Benefits
Performance storage in the right capacity and at the right price,
installs in minutes and is virtually maintenance-free; built with the expertise
that have made Snap Server the choice of nearly 200,000 users around the world.
Key Differentiators
The best combination of performance, capacity, and features for the
price. The ability to share, manage, and protect data in a distributed office
environment.
Capacity Options
Available with a fixed capacity of 160GB, 250GB, 500GB or 750GB
Cross-Platform Support
GuardianOS, Windows, Linux, UNIX, Apple
Network Interface
Autosensing 10/100/1000Base-T, single RJ-45
Processor
1GHz
Memory
256MB
Drive Configuration
1 x 160GB SATA II drive
1 x 250GB SATA II drive
1 x 500GB SATA II drive
Network Transport Protocols
TCP/IP, UDP/IP, AppleTalk
Network File Protocols
Microsoft Networks (CIFS/SMB), Linux/UNIX (NFS v2/3 over TCP & UDP),
Apple (AFP v2/v3), Web (HTTP 1.1/HTTPS), File Transport Protocol (FTP)
Network Block Protocols
iSCSI target support
Supports qualified iSCSI software and hardware initiators (see details
below). Supports Internet Storage Name Services. (iSNS). Microsoft iSNS v3.0
Server has been qualified
iSCSI software initiator support
Microsoft Initiator 1.06 and 2.01: Windows 2003, 2000, XP (on 32-bit
system only for all operating systems)
emBoot NetBoot/i v1.10 and WinBoot/i (only for boot) v2.0; Windows 2003, 2000,
XP (WinBoot uses Microsoft bootable initiator and only supports Windows 2003 (on
32-bit system only for all operating systems)
Linux: UNH-iSCSI Initiator v1.5.3
iSCSI hardware initiator support
Qlogic QLA4010: Windows 2003 (Storport driver 2.1.0.8), 2000 (SCSIport
driver 2.1.0.3) (on 32-bit system only for all operating systems)
Network Client Types
Window: 98, Me, NT, 4.0, 2000, 2003, XP
Macintosh: OS 8.x, 9.x, 10.x
UNIX: Solaris 7, 8, 9; HP-UX 11; AIX 4.3.3, 5.x
Linux: Red Hat Linux 7.x, 8.x, 9.x; Fedora
FTP
Server Emulation
Windows 2000/2003
Windows NT 4.0
AppleShare (v2/v3)
NFS v2/v3
FTP
Network Security
Microsoft Active Directory Service (ADS Member Server)
Kerberos Authentication v5
Windows NT Domain (member server)
File and Folder Access Control List (ACL) Security for Users and Groups
Security for Users and Groups
UNIX Network Information Service (NIS) Support
UID/GID mapping between NFS & CIFS
CHAP Authentication (iSCSI target level)
System Management
Browser-Based User Interface for Remote Administration
Snap Server Manager Client-Based Setup Utility (platform-independent)
SNMP (MIB II and Host Resource MIB)
User Disk Space Quotas for Windows, Macintosh, and UNIX/Linux
Group Disk Space Quotas for NIS Groups
Environmental Monitoring
Email Notification Alerts
Network Time Protocol Support
Secure Sockets Layer (SSL) v2/3 128-bit encryption
Transport Layer Security (TLS) v1
Data Protection
Optional CA eTrust Antivirus software
Optional snapshot technology
Optional Snap EDR enterprise-class replication software
Optional BakBone NetVault Workgroup Edition
Optional StorAssure Client Back up Software
Network backup: Supports VERITAS NetBackup/Backup Exec, CA BrightStor ARCserve/Enterprise,
Legato NetWorker, BakBone NetVault, Microsoft Backup Software for Windows 95,
98, Me, NT, 2000, XP, and NDMP v2, v3, v4. Compatible with Dantz Retrospect for
Macintosh.
USB: Support for APC UPS device over USB
Power Rating
60W 100-240 VAC 50-60Hz
Input Current
1.8 (RMS) for 115VAC, 0.9A (RMS) for 240VAC
Power Consumption
44W (steady state)
Heat Dissipation
150 BTUs/hr
Acoustics
Operating idle: 36db (typical office environment)
Height
3.1 inches (78.74mm)
Width
6.1 inches (154.9mm)
Depth
10.1 inches (256.5 mm)
Weight
6.5 lbs (2.77 kg)
Warranty
3-year hardware warranty; 30-day software support
|
|
|
|
|
|
|
 |
